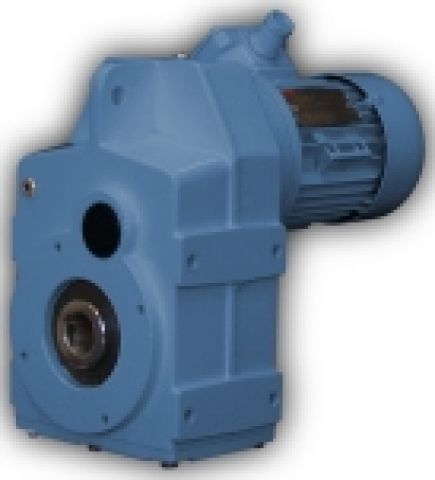

Shaft mount geared motors series F


Series F shaft mount geared motors are your solution with hollow shaft and integrated torque reaction bracket for easy mounting on machine shafts. They are also available with output flanges, output shafts and the KIBO® hollow shaft which allows trouble free maintenance. Gear cases are in cast iron.

These gear boxes are assembled from a modular kit system that minimizis inventory and makes the product range highly available.

Our series F geared motors are available as double, triple, quadruple and quintuple reduction units to suit the ratio you need. It can be motorised with standard IEC but also NEMA motors from the shelve as the motor adapter is an oil tight system.

Advantage:

> IEC and NEMA Motoradapters for highest flexibility
> SWIFT inventory system for best availability
> KIBO - Hollow shaft system for easy mounting and dismounting
> Versatile mounting for easy replacement of existing drives from various brands

Technical data:

Input power: from 0,06 to 110 kW
Output torque: from 168 Nm to 16 500 Nm
Gear ratios: from 5 : 1 to 5 600 : 1
Gear cases: 11 sizes starting from 20 mm outputshaft

Options:

IEC motor adaptor, free input shaft, NEMA motor adaptor, easy allows motors with brake, double sealring option, ATEX availability, SWIFT stocking system, KIBO hollow shaft, back stop flange for IEC motors....
