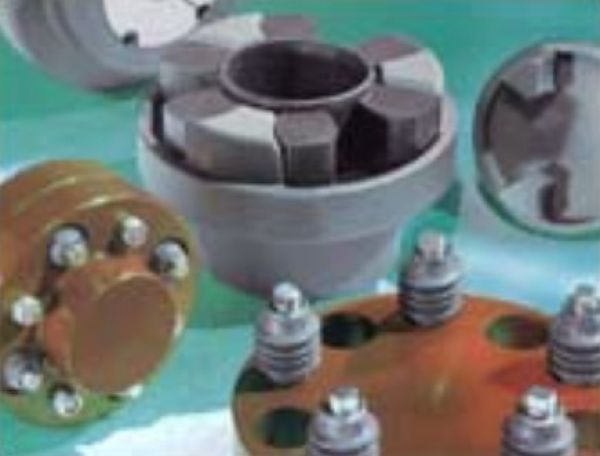

Elastic couplings series LB


LB couplings are made for the reliable torque transmission having radial-, axial-, and angular displacement on drive shafts. This coupling is well proven in particular at drive systems with high demands regarding torsional vibration.
Power transmission is done with rubber elements having a special profile, that is pre tensioned in its mounting position. This pretensioning develops a progressive characteristics that successfully prevents the development of torsional vibration.
The series LB coupling design allows the mechanical disengagement in its mounting place, through which its service and repair work without axial movement from hubs, motors, gearboxes etc. can be done easily.

ADVANTAGES:

> Easy mounting and dismounting
> High absorption of shocks
> Simple service and repair
> Rugged design

TECHNICAL DATA:

> Torque up to 35 000 Nm
> speed up to 6 000 Rpm
> shaft diameter up to 220 mm

VARAINTS:

> vulcanised rubber
> Nitrit rubber
> oil resistant
> available with Taper Lock system
